Samples

Canonical V1 Envelope

The canonical V1 envelope example shows the current document hierarchy, document-wide <data>, identified frames, and default per-frame SVG output.

Cross-Frame Page Links

The cross-frame page-link example demonstrates local page stubs, to <frame ID> / from <frame ID> labels, and multi-page render commands. Detailed anchor rules live in the Arrow Reference.

The frame metadata example shows built-in id/title/content-version tags, custom entries, top/bottom placement, and page links that route around metadata reservations. Detailed metadata rules live in the Frame Reference.

Hybrid Enterprise Architecture

Hybrid enterprise architecture sample

This sample combines the larger network-routing showcase with canonical V1 page metadata. Its frame declares a stable id, visible title, and content version, so the built-in metadata band reserves its edge strip while the existing route/traffic lanes, line jumps, junctions, and manual bends continue to use the shared routing pipeline.

Source: docs/src/examples/samples/complex-hybrid-architecture.xal

xaligo render docs/src/examples/samples/complex-hybrid-architecture.xal \
  --format svg \
  --mode network \
  -o output/complex-hybrid-architecture.svg

Structural Diff

This pair demonstrates a title update, an element moved between groups, a removed legacy store, an added cache, and changed connections. The comparison uses parsed .xal structure rather than text lines.

Removed and previous values

Structural diff removed elements

Added and current values

Structural diff added elements

Sources:

xaligo diff \
  docs/src/examples/samples/diff-before.xal \
  docs/src/examples/samples/diff-after.xal \
  -o docs/src/images/diff-sample

The command reports +2 -2 ~3: two added branches, two removed branches, and three modified or moved elements. The old SVG uses pale red and the new SVG uses pale green; unchanged elements retain their normal styling.

Isoflow Export

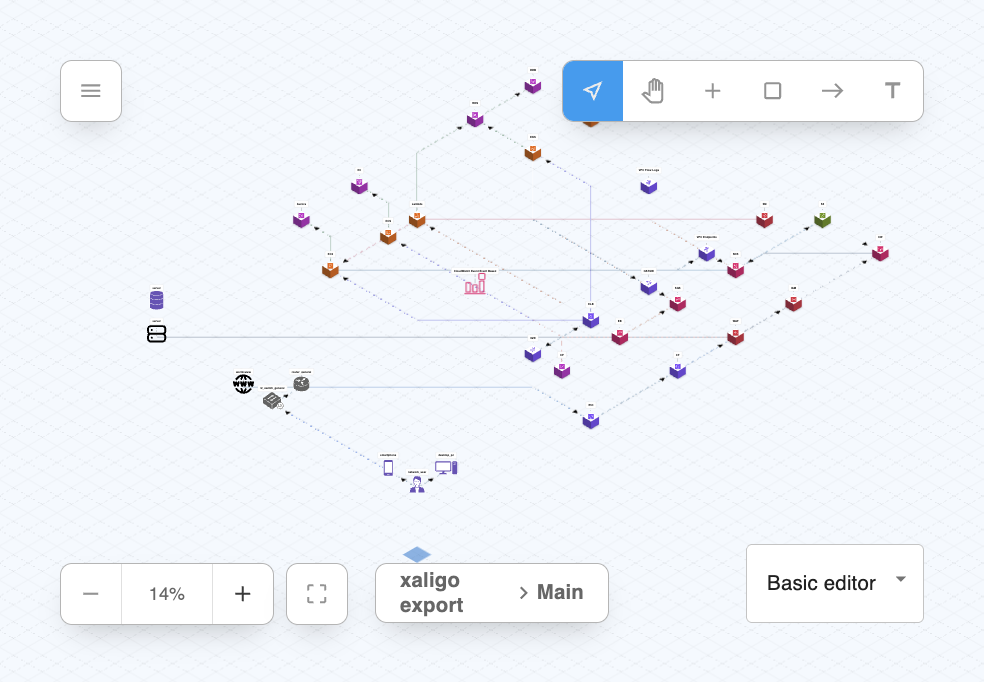

Isoflow editor rendering the hybrid architecture sample

Use the same .xal source to generate an Isoflow-compatible model:

xaligo render docs/src/examples/samples/complex-hybrid-architecture.xal \
  --format isoflow \
  --mode network \
  -o output/complex-hybrid-architecture.isoflow.json

Route and Traffic Separation

Use kind="route" for structural paths without arrowheads, then add kind="traffic" connections over the same endpoints for directional flows. Traffic lines are drawn beside the matching route lane when possible.

Source: docs/src/examples/samples/route-traffic.xal

xaligo render docs/src/examples/samples/route-traffic.xal \
  --format svg \
  --mode network \
  -o output/route-traffic.svg

Generated AWS Hierarchy

Generate a starter AWS hierarchy and render it:

xaligo generate xal --clouds 1 --accounts 1 --regions 2 --azs 2 \
  --az-layout staggered --subnets 2 --spacing both --start top \
  --paper A4 --orientation landscape -o output/infra.xal

xaligo render output/infra.xal \
  --format excalidraw \
  -o output/infra.excalidraw \
  --services docs/src/examples/samples/services.csv
