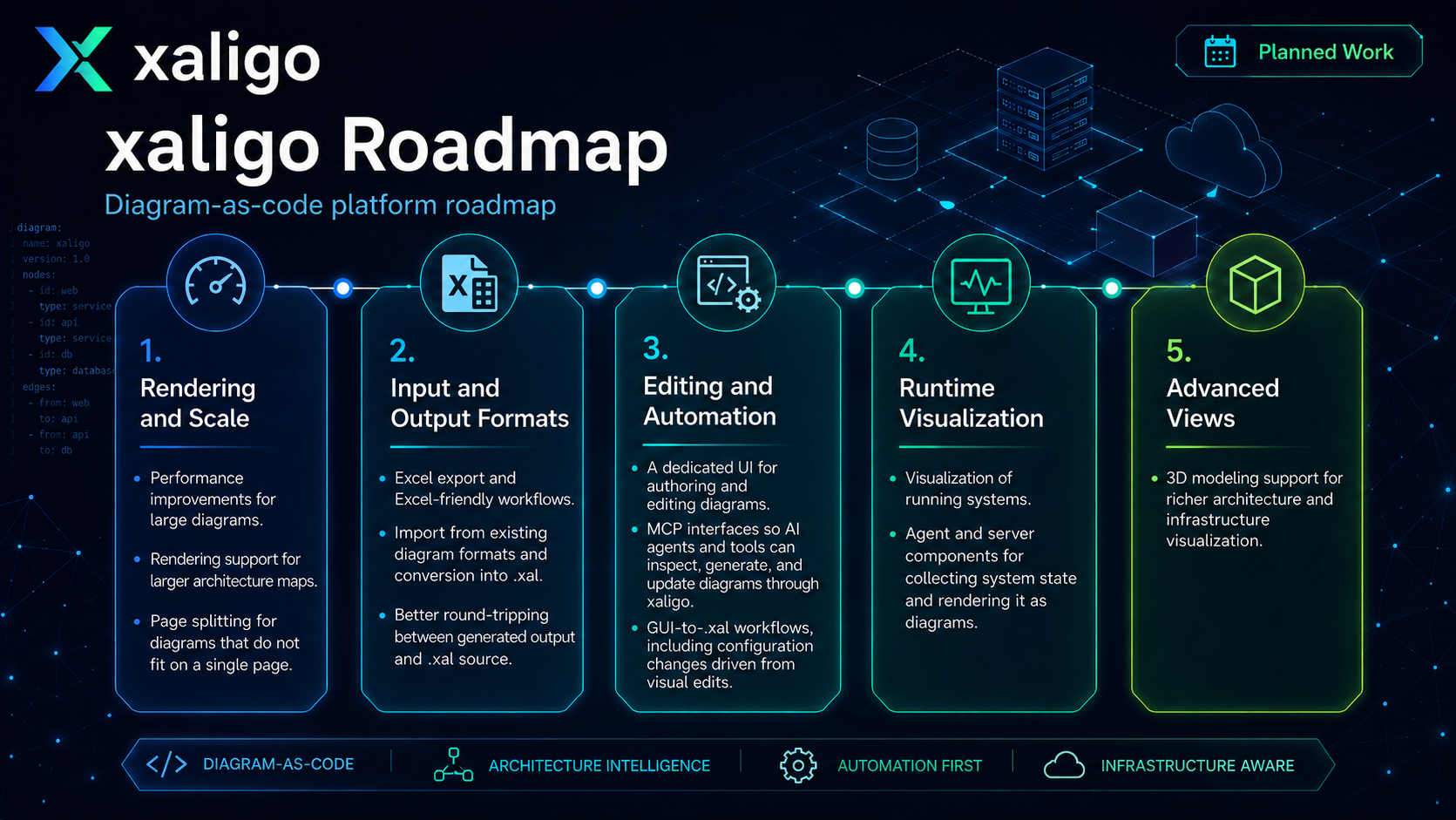

Planned Work

xaligo is being developed as a diagram-as-code platform for architecture, network, and operational visualization workflows. The items below are planned or under consideration and may change as the core renderer evolves.

Rendering and Scale

  • Performance improvements for large diagrams.
  • Rendering support for larger architecture maps.
  • Tiling one oversized frame across several physical pages.

Frame pagination status

Identified child frames are now physical page boundaries. The full scene is resolved first and then projected in source order:

OutputDefault frame mapping
SVGOne file per frame
PPTXOne slide per frame
PDFOne page per frame
ExcelOne worksheet containing the frame SVG

--combine-frames retains the former single-canvas/page form. Excalidraw, XYFlow, and Isoflow remain one logical document. Default SVG uses the exact frame rectangle as its canvas and clip boundary; PDF and Excel inherit that strict page/image crop, while combined SVG keeps marker-safe bounds.

Page frames can also add a top/bottom metadata band for built-in id, title, content version, and arbitrary key/value tags. The resolved row-gap (4 pixels by default) supplies both the inter-row spacing and the metadata page-edge inset at the selected vertical edge and both horizontal edges; rows use frame width - 2 * row-gap. A full-width reservation strip still starts at the outer logical frame edge, extends to the final content-box boundary, remains at least row-gap + complete band height + 8 pixels deep, and excludes normal items, text, connector geometry and labels, and page links. Auto/fixed widths, typography, colors, ordered greedy row wrapping, explicit row breaks, per-row alignment, page ownership, and safe page-link edge selection are resolved before the physical formats project one frame per page. Cross-frame links can select item and logical page-edge anchors independently, preserve the frame anchor’s tangent coordinate, and place the drawable terminal on a parallel inward line. That inset is the resolved metadata row-gap, or 4 pixels when metadata is absent; zero retains the outer edge and the value is never clamped. Links reject unsafe explicit geometry. Without an explicit frame terminal, unsafe candidates are filtered and rendering chooses the nearest safe side from actual visual geometry; only an empty candidate set is an error. Labels remain 4 layout pixels from the final inset terminal. XYFlow and Isoflow omit this page decoration.

This frame pagination is separate from generic tiling. Remaining scale work is to split one oversized frame into multiple tiles, add large-diagram regression samples and benchmarks, and optimize the slowest measured shared stages.

Rendering Correctness Foundation

The shared renderer now rejects non-finite and invalid layout numbers, resolves fixed children before flex ratios, records content boxes and explicit overflow, detects parent and port overlap violations, and gives SVG/PPTX and the SVG-derived PDF/Excel output a common text layout and PPI transform. CLI format dispatch also goes through one use-case entry point. See Internal Architecture and Algorithms.

The next structural steps are:

  1. Store a typed normalized layout specification instead of repeatedly reading numeric strings from the syntax tree.
  2. Store the shared item-grid solver’s selected cells in resolved layout and include mixed item/rectangle occupancy; minimum-cell and item-offset preflight already run during Build.
  3. Move catalog-derived intrinsic label measurement and final connector geometry into the same validation pass used by render.
  4. Replace the remaining Excalidraw-shaped canonical scene and presentation- shaped physical plan schema with genuinely format-neutral models, retaining compatibility aliases at public boundaries.
  5. Extend cross-format regression coverage for editable text behavior, item offsets, connector values, and non-default PPI/paper fitting.

V1 Compatibility and V2

<xaligo version="1"> is the canonical V1 envelope. Historical root <frame> and <frames> documents remain compatible but emit a migration warning. V2 will use the distinct <scene version="2"> root, allowing an existing V1 reader to reject V2 safely without understanding it.

The V2 renderer will also accept V1 input through a V2-owned compatibility frontend. Native V2 and compatible V1 input will each be parsed once and lowered directly to the same typed, renderer-neutral model. The design avoids XML rewriting, parser retry, serialized scene round-trips, and running the full V1 renderer inside V2. V1 itself remains independent of V2.

Golden compatibility tests will cover roots and defaults, unknown nested tags, strict versus fallback enum behavior, connection inheritance and anchors, signed-32-bit catalog IDs, item-size render contexts, and equivalent resolved geometry across native and embedded targets.

Input and Output Formats

  • Excel-friendly data workflows beyond the implemented frame-image workbook export.
  • Import from existing diagram formats and conversion into .xal.
  • Better round-tripping between generated output and .xal source.

The V1 structured-diagram profile includes a document-wide data registry, general tables, relational schema/ER views, and the supported class, component, activity, state-machine, and sequence UML diagram components. It deliberately keeps their semantic processors separate while reusing neutral drawing and encoding contracts. See Structured Diagrams: Tables, Databases, and UML. Its <xaligo version="1"> envelope is the canonical V1 syntax; legacy root documents continue to render with warnings.

Editing and Automation

  • A dedicated UI for authoring and editing diagrams.
  • MCP interfaces so AI agents and tools can inspect, generate, and update diagrams through xaligo.
  • GUI-to-.xal workflows, including configuration changes driven from visual edits.

Runtime Visualization

  • Visualization of running systems.
  • Agent and server components for collecting system state and rendering it as diagrams.

Advanced Views

  • 3D modeling support for richer architecture and infrastructure visualization.
